| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Model Number: | C120 A320 E10 A116 |
| Minimum Order Quantity: | 5KG |
| Price: | USD+62+KG |
| Packaging Details: | Plastic box +12*5*2cm for 10 pcs |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+Kg+per month |
| Type: | Brazed Tips E25 | Material: | Tungsten Carbide YG6,YT15, YW1,Etc |
|---|---|---|---|
| Diameter: | 5-25mm | Application: | Cutting Tool, Crusher, Wear Parts |
| Grade: | Yt726,yg8,yw1 | HRC: | 85-90 |
| Highlight: | Cutting Tool Tungsten Carbide Brazed Tips,OEM Tungsten Carbide Brazed Tips |
||

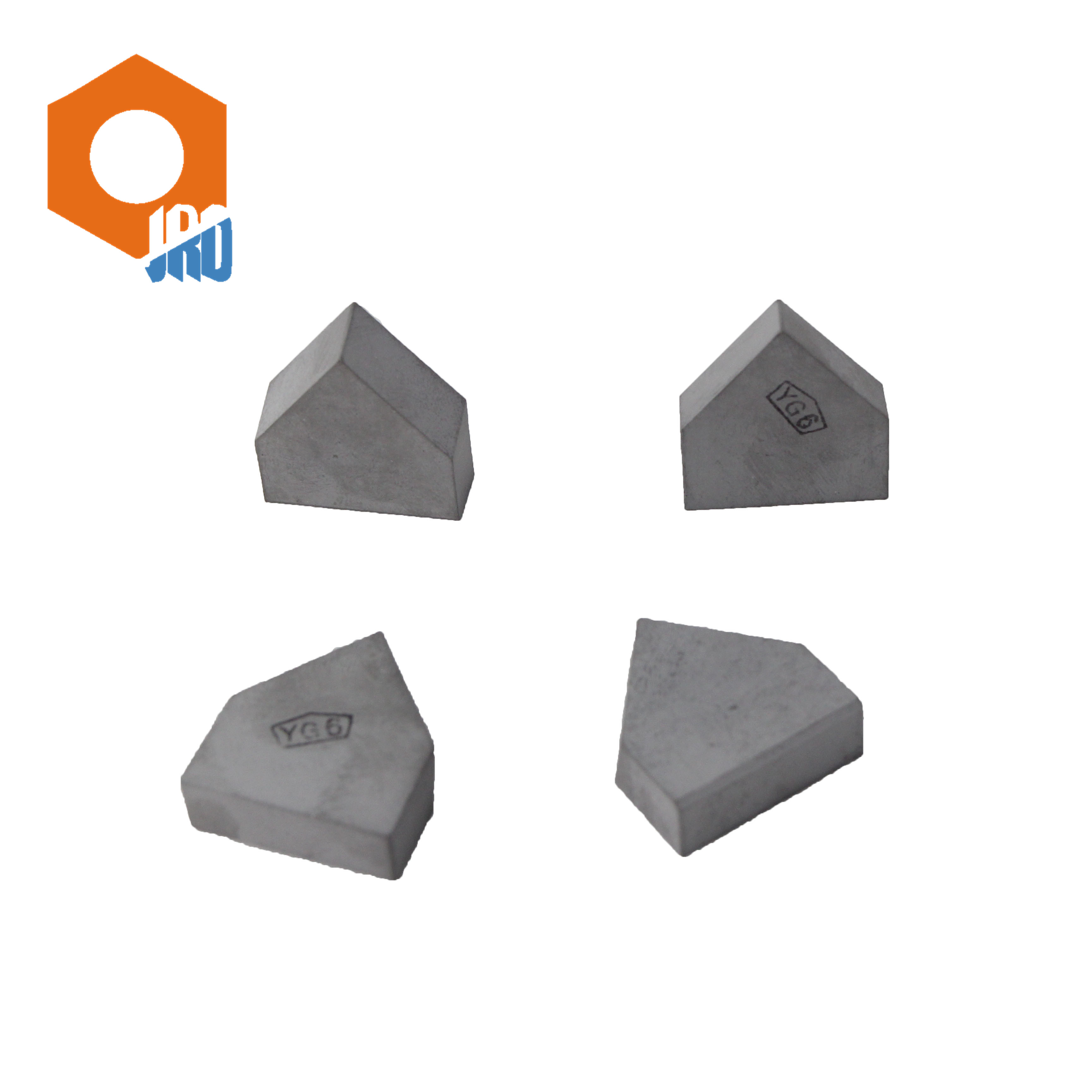

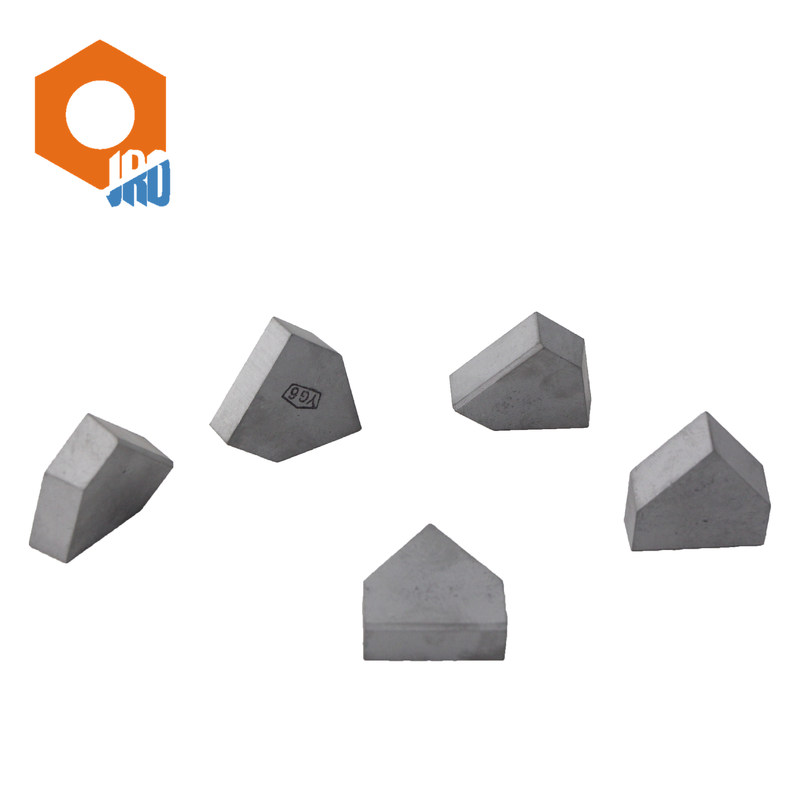

Brazed Tips Tungsten Carbide YG6, Type E
| Type | Dimension (mm) | |||
| L | t | s | ɑ | |
| E4 | 10.0 | 4.0 | 2.5 | / |
| E5 | 12.0 | 5.0 | 3.0 | / |
| E6 | 14.0 | 6.0 | 3.5 | / |
| E8 | 16.0 | 8.0 | 4.0 | 9° |
| E10 | 18.0 | 10.0 | 5.0 | 9° |
| E12 | 20.0 | 12.0 | 6.0 | 9° |
| E16 | 22.0 | 16.0 | 7.0 | 9° |
| E20 | 25.0 | 20.0 | 8.0 | 9° |
| E25 | 28.0 | 25.0 | 9.0 | 9° |
| E32 | 32.0 | 32.0 | 10.0 | 9° |
Why Choose Tungsten Carbide Brazed Tips
Cement carbide can be used to cut superhard metals, stainless steel, cast iron, hardened steel, etc. For special applications, specific materials can be adapted to satisfy customers' requirements. ZGJRDCC can supply various types of tungsten carbide brazed tips including A type, B type, C type, D type, E type, K type, etc.
| Type | Dimension(mm) | Grade/ grams | |||||||
| Right | Left | L | T | S | e | YG6 | YW | YT5 | YT14 |
| A310 | / | 10 | 6 | 3 | 0.8 | 2.4 | 2.3 | 2 | 1.8 |
| A312 | A312z | 12 | 7 | 4 | 0.8 | 6.8 | 6.6 | 5.7 | 5.2 |
| A315 | A315z | 15 | 9 | 6 | 0.8 | 10.7 | 10.5 | 8.9 | 8.2 |
| A320 | A320z | 20 | 11 | 7 | 0.8 | 12.3 | 12 | 10.5 | 9.8 |
| A325 | A325z | 25 | 14 | 8 | 0.8 | 21.3 | 20.8 | 17.5 | 16.3 |
| A330 | A330z | 30 | 16 | 9.5 | 0.8 | 24.7 | 24.3 | 21 | 19.7 |
| Type | L | T | S | r/e | YG6 | YW | YT5 | YT14 | |
| C110 | 10 | 4 | 3 | 0.5/0.8 | 1.5 | 1.5 | 1.3 | 1.2 | |
| C116 | 16 | 6 | 4 | 0.5/0.8 | 4.8 | 4.7 | 4 | 3.7 | |
| C120 | 20 | 8 | 5 | 0.5/0.8 | 10.1 | 9.9 | 8.2 | 7.7 | |
| C122 | 22 | 10 | 6 | 0.5/0.8 | 15.6 | 15.3 | 13.7 | 12.1 | |
| C125 | 25 | 12 | 7 | 0.5/0.8 | 25 | 24.6 | 21.3 | 19.1 | |
Use:
For external turning, boring and groove tools.
For facing tools and external circle turning tools.
For external circle turning and face milling tools.
For profile turning tools and dovetail groove planing and milling tools.
For concave profile turning tools and wheel edge turning tools.
For convex profile turning toolsFor making twist drills and straight groove drills.
