| Place of Origin: | China，Sichuan |
|---|---|
| Brand Name: | OEM |
| Model Number: | custom |
| Minimum Order Quantity: | 10pcs |
| Price: | USD+185+Pieces |
| Packaging Details: | carton+20*15*15cm for 50 pcs |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000+pieces+per month |
| TYPE: | TC Seal Ring | Material: | Tungsten Carbide K10 K20 |
|---|---|---|---|
| Surface Roughness: | Ra 0.025 | Tolerance Value: | ±0.002 |
| Temperature: | -20℃ To 300℃ | Size: | Customized Size， OEM |
| Place Of Origin: | Zigong , China | MOQ: | 10 PCS |
| Highlight: | Tungsten Carbide Seal Rings Polished,0.002 Tolerance Tungsten Carbide Seal Rings |
||

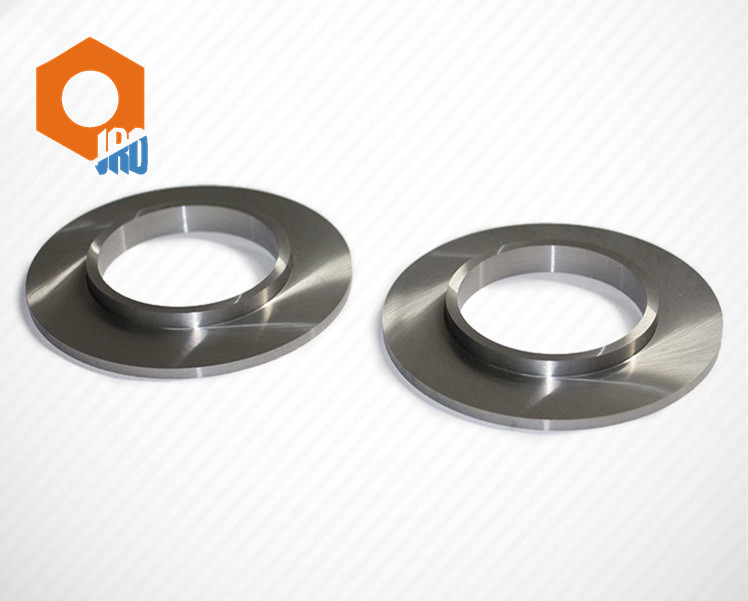

1.Tungsten carbide seal ring is used mainly forChemical liquid with strong acid and alkali and wastewater pump, water discharge pump for the mines, centrifugal pump, centrifuge, slag slurry pump and slurry pump in the adverse working conditions of high-speed rotation, sand flush abrasion, and corrosion.
2.we provides various types of tungsten carbide mechanical seal rings like Plain Ring, T-shape, O-shape, U- type, face seal rings, and per customers' requirements, the diameter 5mm-280mm.
3.Tungsten carbide material has good conductivity, thermal conductivity and corrosion resistance with high density of 14 g/cm3 to 15.5 g/cm
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
• The tungsten carbide seal ring can be divided into both of the rotating seal ring and static seal ring, and constitutes mechanical seal together with the spring,rubber seal ring and steel jacket.
• It's mainly used for waste water pump, water discharge pump for the mines, centrifugal pump, slag slurry pump and slurry pump in the adverse working conditions of high speed rotating,sand flush abrasion and corrosion.
• The seal ring is installed on the pump body and rotating axle, and forms through the end face of the rotating and static ring a liquid or gas seal.
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
