| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Model Number: | custom |
| Minimum Order Quantity: | 20pcs |
| Price: | USD+9.5+Pieces |
| Packaging Details: | carton +25*20*20+50pcs |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000+pieces+per month |
| Type: | Tungsten Carbide Bushing Sleeve | Materil: | Cemented Carbide,tungsten Carbide |
|---|---|---|---|
| Grade: | YG6,YG8,YT15,etc. | Size: | OEM, Custom |
| Hardness: | HRA 89 | Surface Roughness: | Ra 0.12 |
| Highlight: | Cemented Tungsten Carbide Bushing,Tungsten Carbide Bushing YT15,YT15 Carbide Drill Bushings |
||

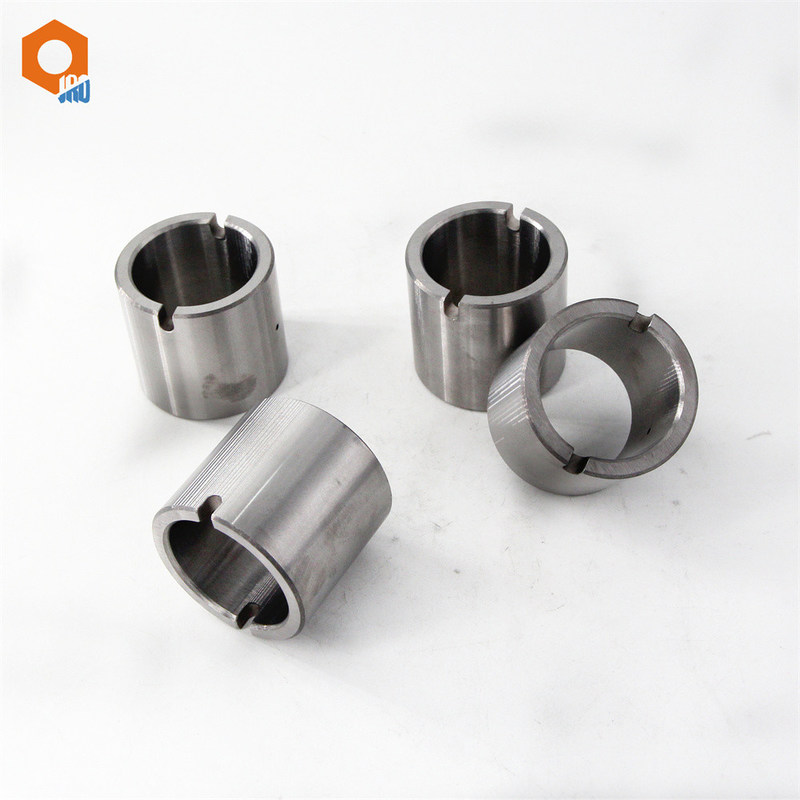

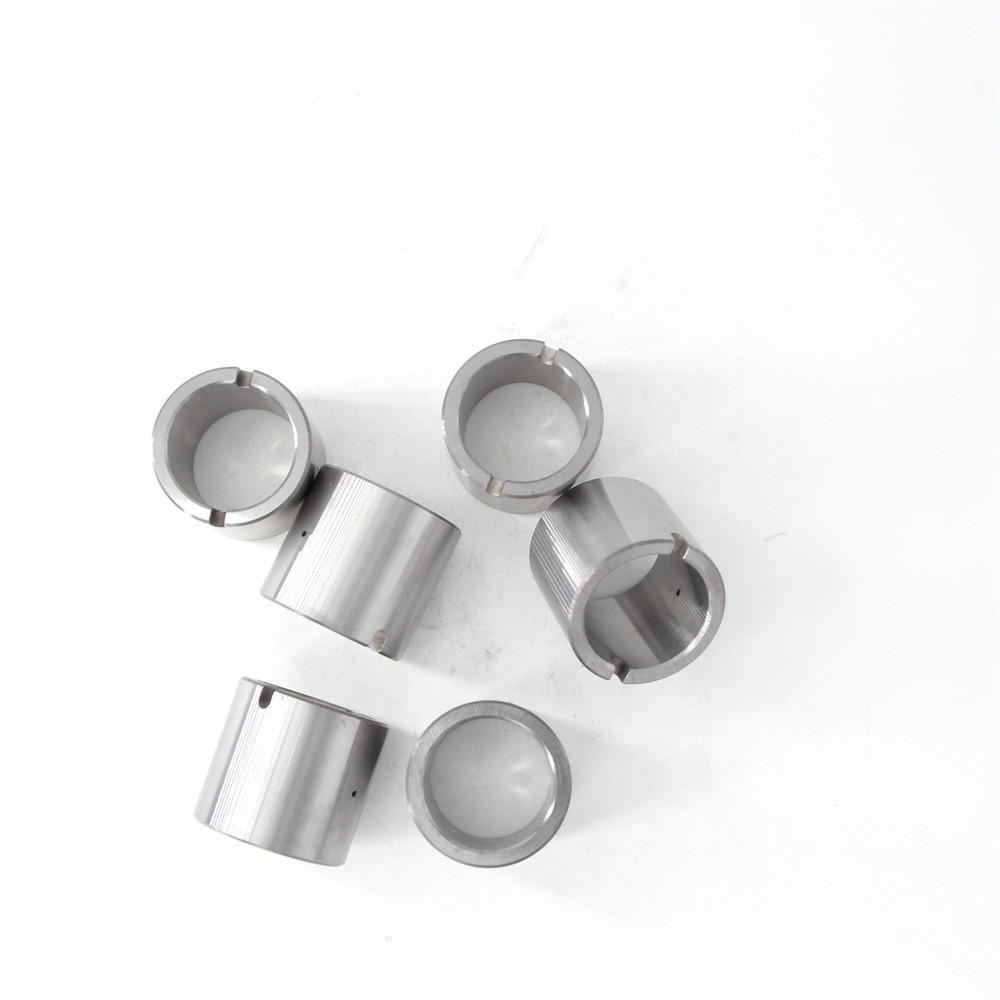

customized cemented tungsten carbide sleeve bushings
TC Bushing/bearing bushing /Spacer sleeves are working in an abrasive environment due to rotation, friction, etc. and the particles involved in the media.
Tungsten carbide bushings with wear and corrosion resistance and a high fracture toughness for demanding axial thrust. and could meet API standard disaster bushing requirement.
Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the traditional material,suitable for the normal tungsten carbide bushings
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
1. Tungsten carbide bushing has the characteristics of wear resistance and impact resistance.
2.It is the supporting parts used in the mechanical parts, in order to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is in the bonnet and is the corrosion-resistant materials for sealing.
3.In the field of bearing application, the carbide bushings are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
