| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Model Number: | custom |
| Minimum Order Quantity: | 20pcs |
| Price: | USD+32+Pieces |
| Packaging Details: | carton +25*20*20+50pcs |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000+pieces+per month |
| Type: | Tungsten Carbide Bushing Sleeve | Materil: | Cemented Carbide,tungsten Carbide |
|---|---|---|---|
| Grade: | YG6,YG8,YT15,etc. | Size: | OEM, Custom |
| Hardness: | HRA 89 | Surface Roughness: | Ra 0.12 |
| Highlight: | Tungsten Carbide Bushing Threaded Metal,Tungsten Carbide Bushing 0.05mm,Ra 0.12 Tungsten Carbide Bushing |
||

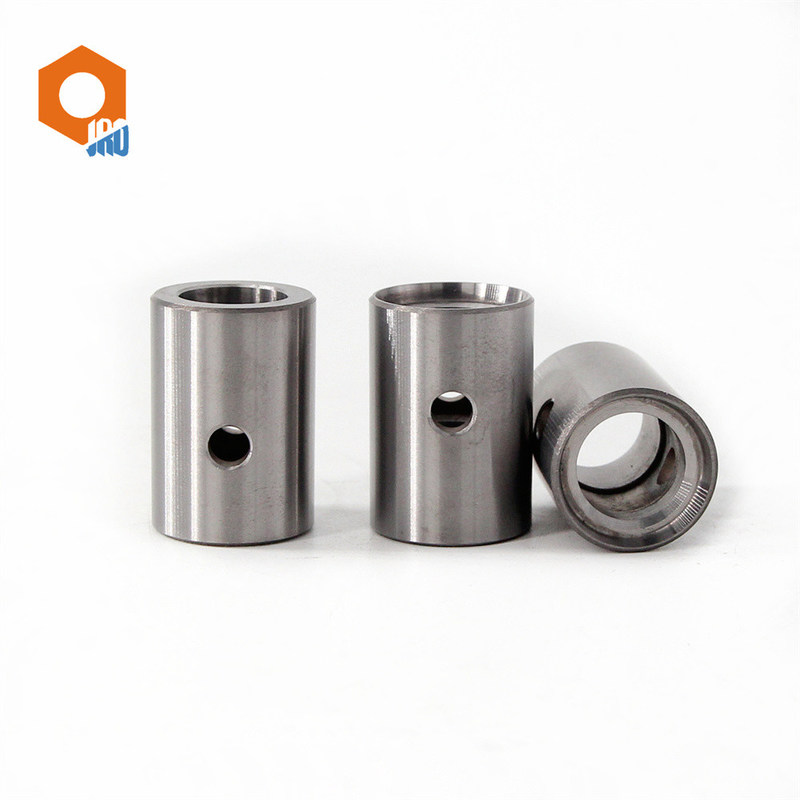

Bushing Customized Sleeve CNC Turning Machining Threaded Metal 0.01-0.05mm Machining Drawing OEM
Tungsten carbide parts holds incredible potential for the oil and gas industry and mining- where leading installations are already profiting from its Wear-resistant, corrosion-resistant and high hardness.
these bushings outlast steel. Mount flush with jig plates for precise drilling. Drill bushings can also be used as spaces, shims, and machinery bushings.
Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the traditional material,suitable for the normal tungsten carbide roller.
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
1. Tungsten carbide bushing has the characteristics of wear resistance and impact resistance.
2.It is the supporting parts used in the mechanical parts, in order to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is in the bonnet and is the corrosion-resistant materials for sealing.
3.In the field of bearing application, the carbide bushings are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.
