YN10 10% Ni Tungsten Carbide Tube Bushing Sleeve Sintered State

Basic Information
Place of Origin: China
Brand Name: OEM
Model Number: custom
Minimum Order Quantity: 20pcs
Price: USD+6.3+Pieces
Packaging Details: carton +25*20*20+50pcs
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 10000+pieces+per month
Detail Information
Type: Tungsten Carbide Bushing Sleeve Materil: Cemented Carbide,tungsten Carbide
Grade: YG6,YG8,YT15,etc. Size: OEM, Custom
Hardness: HRA 89 Surface Roughness: Ra 0.12
Highlight:

Tungsten Carbide Tube Bushing Sleeve

,

YN10 Tube Bushing Sleeve

,

Tube Bushing Sleeve Sintered


Product Description

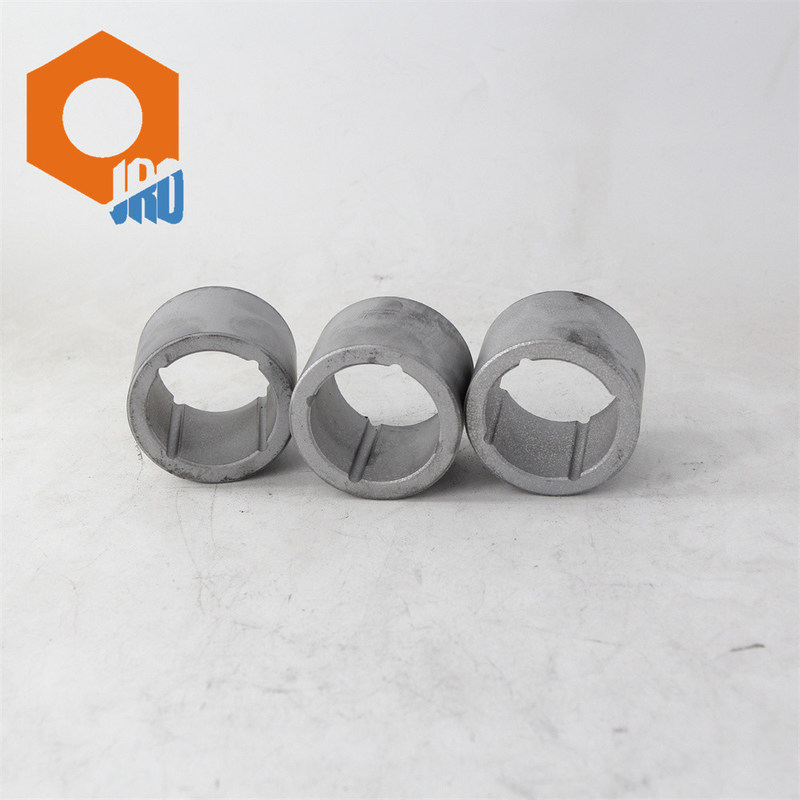

YN10 10% Ni with keyway tungsten carbide straight tube axle sleeve Sintered state bushings Carbide Precision Parts

Cemented Carbide precision products have exceptional mechanical properties and features of high wear and corrosive resistance, high dimension accuracy, and specified surface roughness, and more. The semi-finished Cemented Carbide products will be ground using a diamond wheel and EDM. They will be cut to various components to replace the metal parts under complicated and adverse working conditions in order to increase the efficiency as well as prolong the life cycle.



   Tungsten Carbide bushings have the characters of high wear resistance, high corrosion resistance and good compressive properties.It's widely used in petrochemical industries and other industries which call for high properties of the mechanical parts.

YN10 10% Ni Tungsten Carbide Tube Bushing Sleeve Sintered State 0
YN10 10% Ni Tungsten Carbide Tube Bushing Sleeve Sintered State 1
Product Description:
customized cemented tungsten carbide sleeve bushing

Chinese Grade ISO Chemical Composition Physical Mechanical Properties
WC Co Density Bend Strength Hardness
% % G/Cm3 N/mm2 HRA
YG3 K01 96.5-97 3 14.9-15.3 ≥1180 ≥91.0
YG6X K10 93.5 6 14.8-15.1 ≥1420 ≥92
YG6 K20 94 6 14.7-15.1 ≥1600 ≥91
YG8 K20-K30 92 8 14.5-14.9 ≥1600 ≥90
YG10 K40 90 10 14.3-14.7 ≥1900 ≥89
YG10X 89 10 14.3-14.7 ≥2200 ≥89.5
YG15 K30 85 15 13.9-14.2 ≥2100 ≥87
YG20 80 20 13.4-13.7 ≥2500 ≥85.5
YG20C K40 80 20 13.4-13.7 ≥2200 ≥85.5
YG30 G60 70 30 12.8 ≥2750 ≥82

Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the traditional material,suitable for the normal tungsten carbide roller.


1. Tungsten carbide bushing has the characteristics of wear resistance and impact resistance.
2.It is the supporting parts used in the mechanical parts, in order to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is in the bonnet and is the corrosion-resistant materials for sealing.

3.In the field of bearing application, the carbide bushings are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.

Made of durable tungsten carbide, these bushings outlast steel. Mount flush with jig plates for precise drilling. Drill bushings can also be used as spaces, shims, and machinery bushings.

FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.


2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.


3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
