| Place of Origin: | China,Sichuan |
|---|---|
| Brand Name: | OME |
| Model Number: | custom |
| Minimum Order Quantity: | 1kg |
| Price: | USD+55+kg |
| Packaging Details: | Foam+corrugated box +15*15*10cm for 10 pcs |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+kgs+per month |
| Product Name: | Drawing Die | Material: | Tungsten Carbide |
|---|---|---|---|
| Mould Life: | 250000-300000 Hours | Diameter: | OEM,5mm-150mm |
| Feature: | Very Good Of Impact Resistance | Surface Condition: | Blank |
| Highlight: | YG15 Cemented Carbide Die,YG8 Cemented Carbide Die,Stainless Tubes Cemented Carbide Die |
||

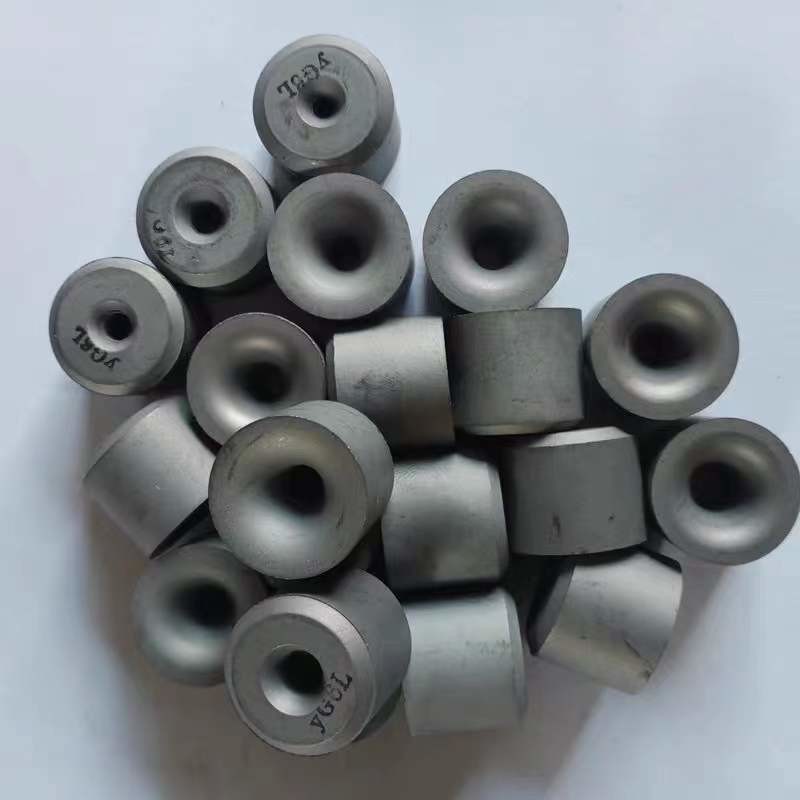

OEM Tungsten carbide die, YG8/ YG15 Tungsten carbide drawing dies for stainless tubes,cemented carbide die
Tungsten carbide drawing dies made to your quality requirements allow you to meeting quality, uptime and speed standards.
Wire drawing dies are commonly used to reduce the diameter of various ferrous and non-ferrous rods and wires. Applications include various grades of low, medium and high carbon steels, steel alloys, stainless steel, welding wire as well as various non-ferrous rods and wires.
Zigong Jingruida tungsten carbide drawing dies (TC dies) give the wire manufacturer the ability to maintain uniform wire roundness, minimizing material usage and scrap.
Tungsten carbide dies are an excellent option for manufacturing ferrous rod-size wires. They are also ideal for short trial runs. Zigong Jingruida TC drawing dies are manufactured with a mirror polish and a smooth wire entry to ensure optimal die life and string-up.
Zigong Jingruida offers a complete line of TC drawing dies for rod-size wire down to medium-size wire.
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
