| Place of Origin: | China,Sichuan |
|---|---|
| Brand Name: | OME |
| Model Number: | custom |
| Minimum Order Quantity: | 2 Set |
| Price: | USD+2250+set |
| Packaging Details: | Foam+corrugated box +15*15*10cm for 10 pcs |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000+kgs+per month |
| Product Name: | Synthetic Diamond Die | Material: | Tungsten Carbide And Steel |
|---|---|---|---|
| Application: | HPHT Synthetic Diamond | Diameter: | OEM,5mm-150mm |
| Feature: | Very Good Of Impact Resistance | Surface: | Grinding |
| Highlight: | Grinding Tungsten Carbide Die,Tungsten Carbide Die Extrusion,HPHT Profile Extrusion Dies |
||

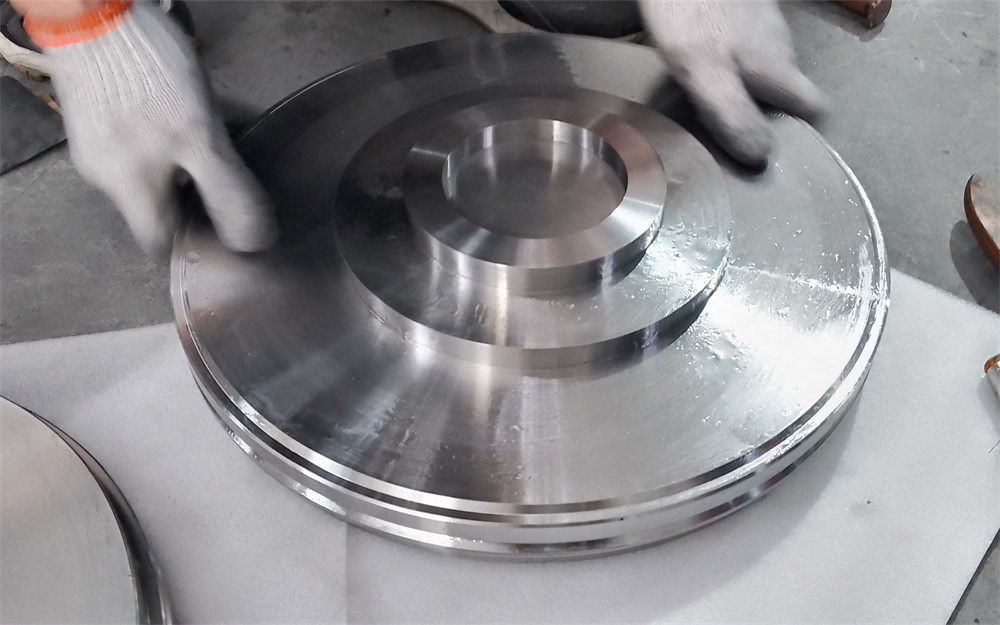

Custom Tungsten Carbide and steel parts for Extrusion dies of growing artificial diamonds HPHT
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
