| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Model Number: | custom |
| Minimum Order Quantity: | 20pcs |
| Price: | USD+26+Pieces |
| Packaging Details: | carton +25*20*20+50pcs |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000+pieces+per month |
| Type: | Tungsten Carbide Bushing Sleeve | Materil: | Cemented Carbide,tungsten Carbide |
|---|---|---|---|
| Grade: | YG6,YG8,YT15,etc. | Size: | OEM, Custom |
| Hardness: | HRA 89 | Surface Roughness: | Ra 0.12 |
| Application: | Strong Acid Strong Base | ||
| Highlight: | CNC Tungsten Carbide Sleeves,Tungsten Carbide Sleeves 0.05mm |
||
Bushing Customized Sleeve CNC Turning Machining Threaded Metal 0.01-0.05mm Machining Drawing OEM
Since years 2016, ZGJRDCC has become synonymous with quality, reliability and best value for money. As the cemented carbide parts supplier, our products are widely used in many different projects locally and in many parts of the world.Energy, mining, aviation, CNC , etc.
We are proud that our continual development and technical support capabilities has made our wear parts and precision parts by many oilfield contractors.
Product Description:

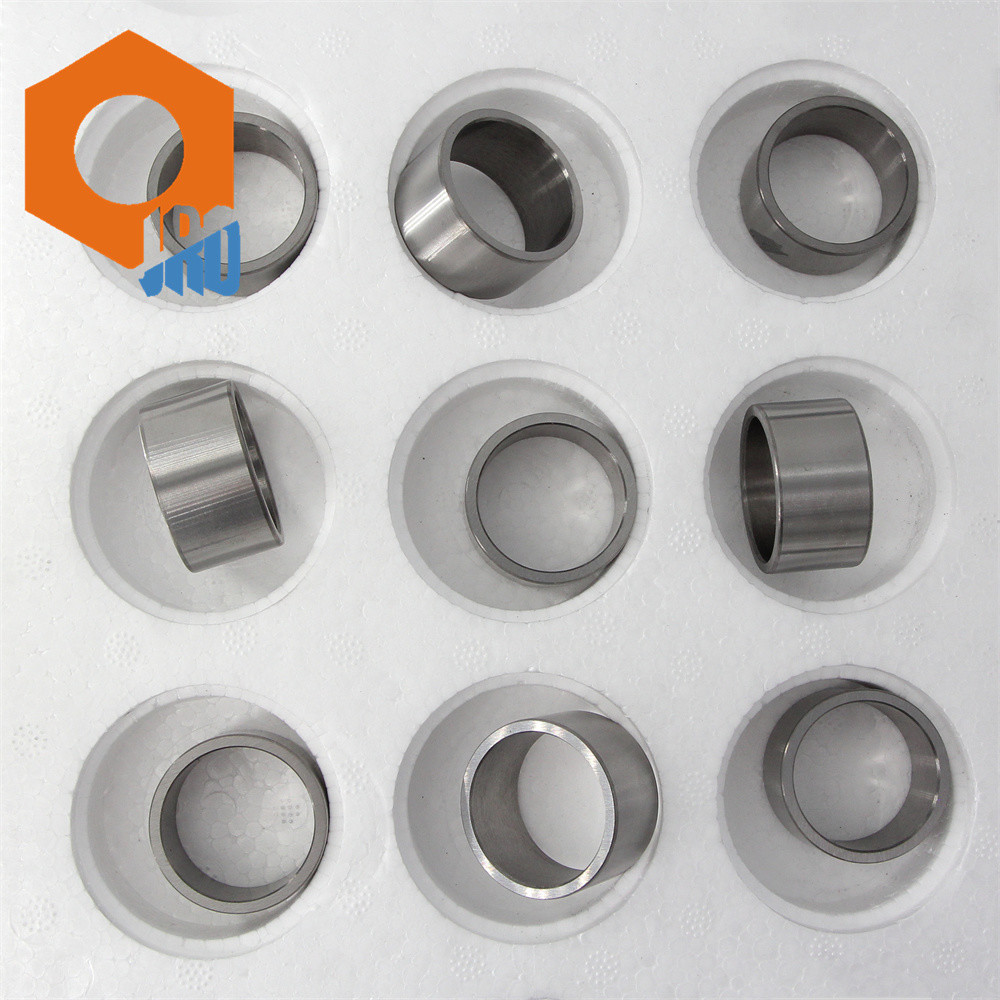

customized cemented tungsten carbide sleeve bushing
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
Grade as following :
YG6,YG6X,YG8,YG8.2,YG8L,YG15,YG20,YG20C,YG20D etc are the traditional material,suitable for the normal tungsten carbide bushings.
1. Tungsten carbide bushing has the characteristics of wear resistance and impact resistance.
2.It is the supporting parts used in the mechanical parts, in order to achieve sealing, wear protection and other functions.
In the field of valve applications, the tungsten carbide bushing is in the bonnet and is the corrosion-resistant materials for sealing.
3.In the field of bearing application, the carbide bushings are used to reduce wear between the bearing and the shaft seat, and to avoid the increase of clearance between shaft and hole.
