| Place of Origin: | China |
|---|---|
| Brand Name: | OME |
| Model Number: | custom |
| Minimum Order Quantity: | 20pcs |
| Price: | USD+75+Pieces |
| Packaging Details: | carton +25*20*20+50pcs |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability: | 10000+pieces+per month |
| Type: | API Valve Ball And Seat V11 | Materil: | Cemented Carbide,tungsten Carbide |
|---|---|---|---|
| Grade: | YG6,YG8,YT15,etc. | Size: | OEM, Custom |
| Hardness: | HRA 89 | Surface: | Grinding Smooth |
| Highlight: | Tungsten Carbide Valve Seats Corrosion Resistance,Tungsten Carbide Valve Seats Wear Resistance,YT15 Tungsten Carbide Valve Seats |
||
Technic parameters
The valve ball and seat will be produced and checked according to API Specification 11 AX:2006 and GB/T18607-2008(Chinanationalstandard)Their dimension reachs a accuracy of class IT6~IT7, the shape and position reach aaccuracyofclassIT5~IT6,their roughness reachs Ra 0.8~Ra 0.05μ m, and the roundness of valve ball reachs 0.002 μ m, respectively.
Technic level
The material of products has excellent properties, such as good wear and corrosion resistance, good ability ofanti-compression and thermalshock.The products have not only a higher accuracy and also a good sealing character(5seconds without leakage under a vacuum of 85 Mpa), and their production technology reachs an advanced level in China.
| API valve Ball and valve Seat Size | ||||||||
| Dimensional Symbol | V11-106 | V11-125 | V11-150 | V11-175 | V11-200 | V11-225 | V11-250 | V11-375 |
| Ball-D(mm) | 15.88 | 19.05 | 23.83 | 28.58 | 31.75 | 34.93 | 42.88 | 57.15 |
| (0.625in) | (0.75in) | (0.938in) | (1.125in) | (1.25in) | (1.375in) | (1.688in) | (2.25in) | |
| Seat-ID(mm) | 11.68 | 13.97 | 17.02 | 20.96 | 24.38 | 26.92 | 33.27 | 43.18 |
| (0.46in) | (0.55in) | (0.67in) | (0.825in) | (0.96in) | (1.06in) | (1.31in) | (1.7in) | |
| Seat-OD(mm) | 20.14 | 23.32 | 29.67 | 35.26 | 37.54 | 43.69 | 51.05 | 78.03 |
| (0.793in) | (0.918in) | (1.168in) | (1.388in) | (1.478in) | (1.72in) | (2.01 in) | (3.072in) | |
| Seat-H(mm) | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.750 |
| (12.70in) | (12.70in) | (12.70in) | (12.70in) | (12.70in) | (12.70in) | (12.70in) | (19.05in) | |
1. Material: tungsten carbide ( cobalt-base alloy, nickel -base alloy )
2.Application fields: Subsurface pump/Oilfield Tubing pump/Insert pump, sealing, it is widely used in petroleum industry and other anti-corrosion machine parts.
3. Properties: Seat-ball valves for oilfield Insert Pumps have good resistance against corrosion and oxidation;

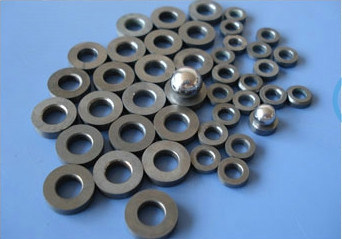

Tungsten carbide valve ball and seat are widely used in petroleum drill and exploitation equipment. It's used to the stationary
and roving unidirectional valve in various tube-type oil suction pump due to their high hardness, wear and corrosion resistance as well as good anti-compression and thermal shock characters with a high pump effect.
tungsten carbide grade
| Chinese Grade | ISO | Chemical Composition | Physical Mechanical Properties | |||
| WC | Co | Density | Bend Strength | Hardness | ||
| % | % | G/Cm3 | N/mm2 | HRA | ||
| YG3 | K01 | 96.5-97 | 3 | 14.9-15.3 | ≥1180 | ≥91.0 |
| YG6X | K10 | 93.5 | 6 | 14.8-15.1 | ≥1420 | ≥92 |
| YG6 | K20 | 94 | 6 | 14.7-15.1 | ≥1600 | ≥91 |
| YG8 | K20-K30 | 92 | 8 | 14.5-14.9 | ≥1600 | ≥90 |
| YG10 | K40 | 90 | 10 | 14.3-14.7 | ≥1900 | ≥89 |
| YG10X | 89 | 10 | 14.3-14.7 | ≥2200 | ≥89.5 | |
| YG15 | K30 | 85 | 15 | 13.9-14.2 | ≥2100 | ≥87 |
| YG20 | 80 | 20 | 13.4-13.7 | ≥2500 | ≥85.5 | |
| YG20C | K40 | 80 | 20 | 13.4-13.7 | ≥2200 | ≥85.5 |
| YG30 | G60 | 70 | 30 | 12.8 | ≥2750 | ≥82 |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
