| Brand Name: | OME |
|---|---|
| Model Number: | custom |
| Minimum Order Quantity: | 5pcs |
| Price: | USD+28+Pieces |
| Packaging Details: | Plastic box +8*1.5*1.5cm for 1pcs |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000+pieces+per month |
| Type: | Thread End Milling Cutter | HRc: | 45-65 HRC |
|---|---|---|---|
| Flute: | ,3,4,5,6 Flutes | Processing Precision: | 0.05mm |
| Suitable For: | Cast Iron, Steel, Rubber,plastic | Length: | 30-200mm |
| Coating: | AlTiN, TiAIN, TiCN, Tin | HS Code: | 8207709000 |
| Highlight: | Multi Pitch End Milling Cutter,End Milling Cutter M12 Thread,tungsten end mill M10 Thread |
||

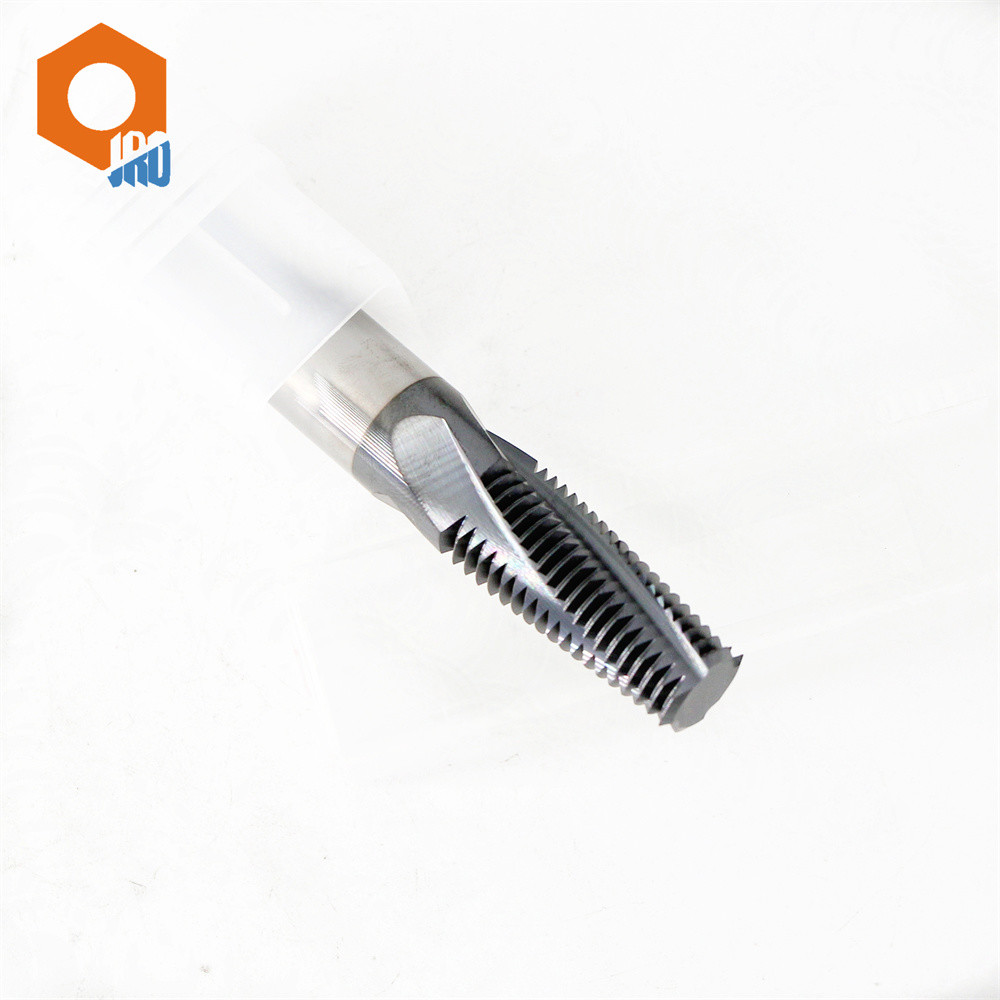

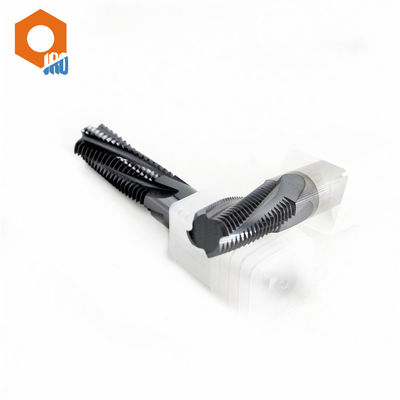

End Milling Cutter
Mill any pitch – inch or metric –Thread Mill Cutters. Available in Single Form, Multi-Form, Tri-Form, and Thread Relief. Many of these tools mill right hand and left hand threads and can cut internal and external 60° UN threads in many materials, including hardened steels.
| Flutes: | 3/4/4/5/6Flute |
| Smooth Finish: | Highly Polished |
| thread | M3,M4,M5,M6,M8,M10,M12,etc. |
| CoatingCoating: | AlTiN, NACO BLUE, NACO BLACK, TiN etc. |
| HRC45, 55, 65: | Flat end mill, ball nose end mill, corner radius end mill and aluminium processing end mill |
| Size: | Dia: 1-20 mm, Overal Length:50-150mm |
| Feature: | Excellent chip evacuation |
| ITEM | FLUTE DIAMETER(d) | FLUTE LENGTH(l) | SHANK DIAMETER(D) | OVERALL LENGTH(L) |
| 1*3*4*50 | 1mm | 3mm | 4mm | 50mm |
| 2*5*4*50 | 2mm | 5mm | 4mm | 50mm |
| 3*8*4*50 | 3mm | 8mm | 4mm | 50mm |
| 4*10*4*50 | 4mm | 10mm | 4mm | 50mm |
| 5*13*6*50 | 5mm | 13mm | 6mm | 50mm |
| 6*15*6*50 | 6mm | 15mm | 6mm | 50mm |
| 8*20*8*60 | 8mm | 20mm | 8mm | 60mm |
| 10*25*10*75 | 10mm | 25mm | 10mm | 75mm |
| 12*30*12*75 | 12mm | 30mm | 12mm | 75mm |
| 14*40*14*100 | 14mm | 40mm | 14mm | 100mm |
| 16*40*16*100 | 16mm | 40mm | 16mm | 100mm |
| 18*45*18*100 | 18mm | 45mm | 18mm | 100mm |
| 20*45*20*100 | 20mm | 45mm | 20mm | 100mm |
FAQ
1.Q: Are you a manufacturer?
A: We are the manufacturer and the factory is in Zigong City, China.
2.Q: Can you customize products for me?
A: Yes, we support OEM&ODM.
3.If you need customized products, please tell me the following information.
-. carbide grade
-. carbide type and application
-. detailed dimensions(it is better to have a technical carbide drawing)
-. product's surface treatment
-. other requirements
